Sync Workflow Editor

vijay.anand
over 8 years ago

Hi,

Got an update and my workflow Processing step looks different.

Can some one tell me what these colors differentiate.



Regards,

VJ

Parents
  • 0 over 8 years ago

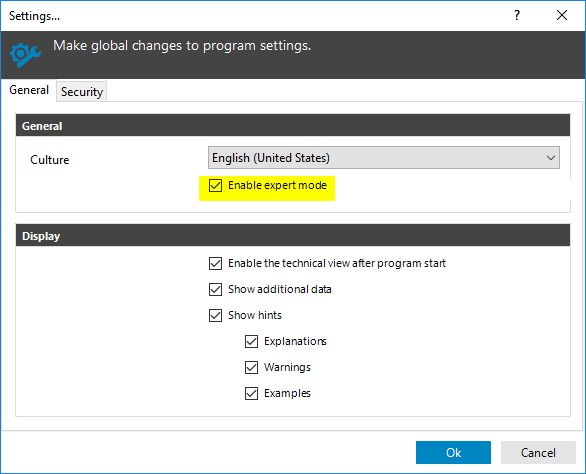

    This has nothing to do with an update. You have activated the expert mode of the synchronization editor.

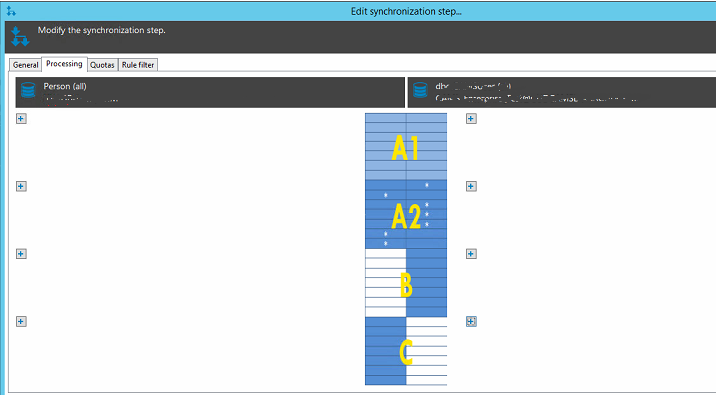

    The workflows step processing view (in expert mode) works a little bit like a Venn diagram.

    For each of the 4 different sets (A1, A2, B and C) you can define which operation should beexecuted with the data for this workflow step.

    Sets are:

    • A1: Object exists on both sides (One Identity Manager - Left and Target System - Right) and all properties are the same according to the mapping rules
    • A2: Object exists on both sides but some properties are different according to the mapping rules
    • B: Object exists only in the target system
    • C: Object exists only in One Identity Manager
Reply
  • 0 over 8 years ago

    This has nothing to do with an update. You have activated the expert mode of the synchronization editor.

    The workflows step processing view (in expert mode) works a little bit like a Venn diagram.

    For each of the 4 different sets (A1, A2, B and C) you can define which operation should beexecuted with the data for this workflow step.

    Sets are:

    • A1: Object exists on both sides (One Identity Manager - Left and Target System - Right) and all properties are the same according to the mapping rules
    • A2: Object exists on both sides but some properties are different according to the mapping rules
    • B: Object exists only in the target system
    • C: Object exists only in One Identity Manager
